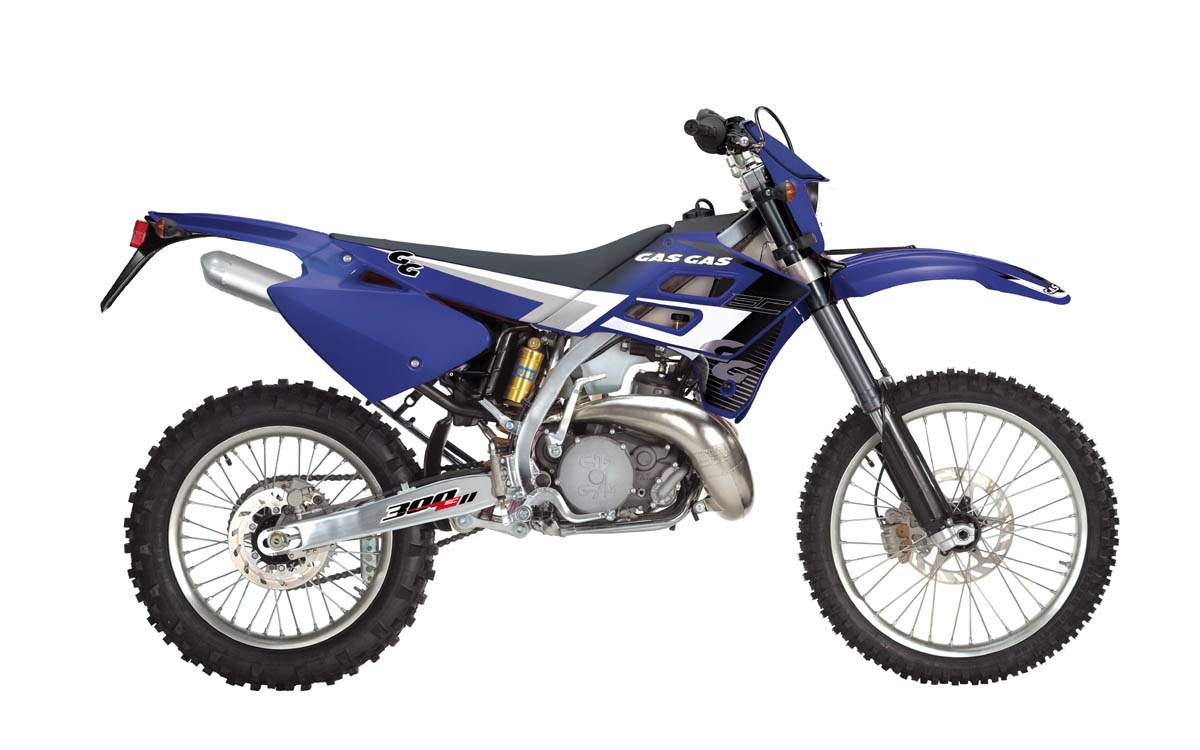

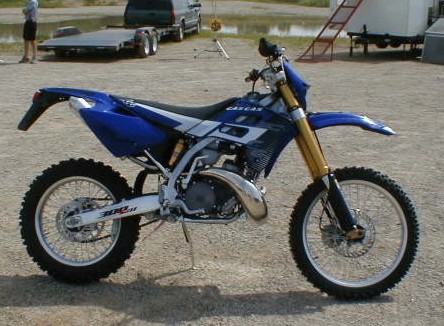

Model
EC 300cc
Engine
Cylinder size
294,7cc
Type
Two stroke, direct carter intake and exhaust valve
Number of cylinders
One
Cooling system
Water
Bore x stroke
72x72mm
Carburettor
Keihin PWK 38mm.
Ignition
Kokusan digital CDI Multispark
Clustch
Hydraulic multi-disc
Gearbox
6 speeds
Maximum power / par
50,6 HP at 7.340 rpm / 5,02 mkg at 6.890 rpm
Frame
Frame
Deltabox type built using cromoly, rectangular tubes,
aluminium swingarm
Front suspension
Upside-down WP 43 mm. diámetro, 295 mm. travel /
Upside-down Marzocchi 45 mm. diámetro, 295 mm. travel
Rear suspension
Progressive system with Öhlins shock absorber, travel
320mm
Front brake
260mm. disc, Nissinbrake pump and Nissin single piston
caliper
Rear brake
220mm. disc, Nissin pump and Nisin single-piston caliper
Wheels
D.I.D. Type U rims with Michelin Comp3 tyres
Size
Wheelbase
1.475 mm
Seat height
940 mm
Minimal ground clearance
340 mm
Fuel tank capacity
9,5 liters
New
NEW MARZOCCHI FRONT FORK WITH TITANIUM TEATMENT TUBES.
NEW AND STRONGERFRONT AND SPOKES AND NIPPLES.
HIGHER HANDLEBAR.
SWINGING ARM AXLE OF 17.
REAR WHEEL HUB 300 GR. LIGHTER.
NEW REAR BRAKE DISK.
NEW REAR SHOCK SETTING.
NEW GRAFFICKS.
NEW REAR SIDE PANELS
NEW SILENCER.
NEW DIGITAL SPEEDO METER.
HANDGUARDS HEBO.
NEW FRAME GEOMETRY. |
