Buddy Parts (50 - 125 - 150 - 170)

Owners Manual

• Covers the Buddy 50, 125, 150 and 170i
• We have a couple of older ones left that only go up to the 150 (as
  shown in the picture)
• If you need one for the 170i just add a note in the order and we'll
  make sure you get the correct one

Service Manual

• Essential if you are going to tackle anything other than basic
  maintenance on your scooter
• There is no manual available for purchase for the Buddy 170i. Sorry

• Buddy 50

• Buddy 125 - 150 - 170i

• Buddy 125 - 150 - 170 - Hooligan - Blur

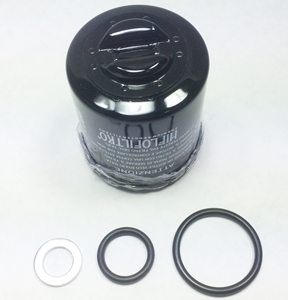

• This is an aftermarket HiFlo Filter
• Has a "slot" to tighten with a large screwdriver
• OEM version has a "nut" to tighten with a wrench

• Includes Oil Filter, O-Rings, and Crush (Sealing) Washer that should be replaced when changing your engine oil
• Crush Washer = Drain Plug

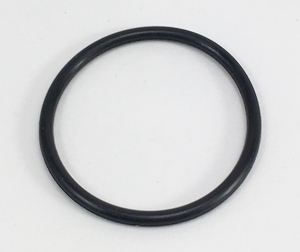

• O-Rings = Oil Screen Cover and Dipstick

• Includes fuel filter and rubber mounting strap
• Buddy 125 - 150

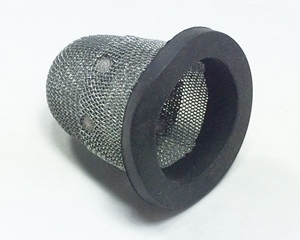

Oil Screen

• Buddy 125, 150 and 170

• NGK is the standard in motorcycle spark plugs and stock on your Genuine Scooter
• Fits the Buddy 50 and Roughhouse 50
• BP7HS

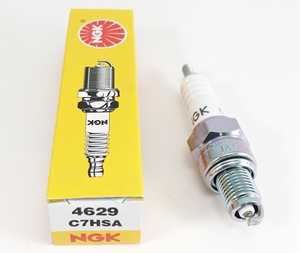

• NGK is the standard in motorcycle spark plugs and stock on your Genuine Scooter
• Fits the Buddy 125, 150, 170i and Hooligan 170i
• CR7HSA

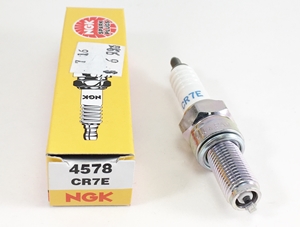

Spark Plug - NGK

• NGK spark plugs are recommend by Genuine USA and PGO Scooters
• Fits the Buddy Kick
• CR7E

Engine Oil Dipstick

• Fits the Buddy 125, 150 and 170i
• Includes new o-ring

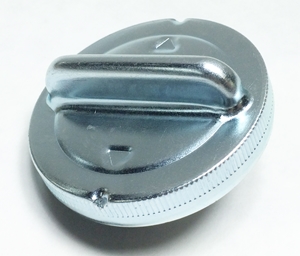

Gas Cap - Metal

• Gas cap for the Metal Tank Buddy's 2007 and newer
• Includes new gasket
• Fits all 50, 125, and 150's
• Sometimes referred to as the Iron Tank models

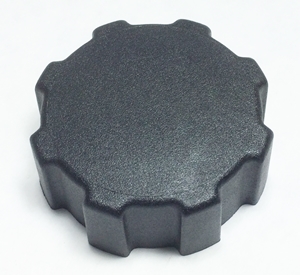

Gas Cap - Plastic

• Cap for the Plastick Gas Tank 2006 Buddy's
• Fits the 50 and any other 2006 plastic tank Buddys

• Buddy 50

• Buddy 125 - 2006 AND OLDER ONLY

• Buddy 50

• Buddy 125 - 150 - 170

• Buddy 50

• Buddy 125 - Buddy 150

• Buddy 50
• Stock Belt

• Buddy 125 - 150 -170
• Stock Belt

• Buddy 125 - 150 -170

• All Buddy's

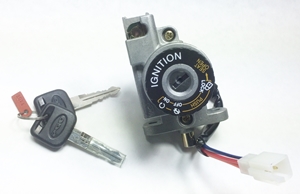

Ignition Switch Assembly

• Complete ignition switch assembly with 2 keys
• This switch is used for the ignition as well as the seat latch
  and the steering lock
• Fits: Buddy 125 and 150 all years
• Fits: Buddy 50 manufactured Nov 2012 or older

Ignition Switch Assembly

• Fits Buddy 50's manufactured Dec 2012 and later

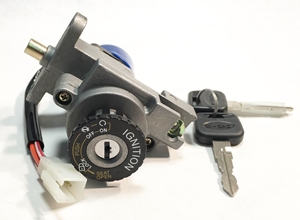

Ignition Switch

• Complete Assembly and 2 Keys
• Buddy 170i

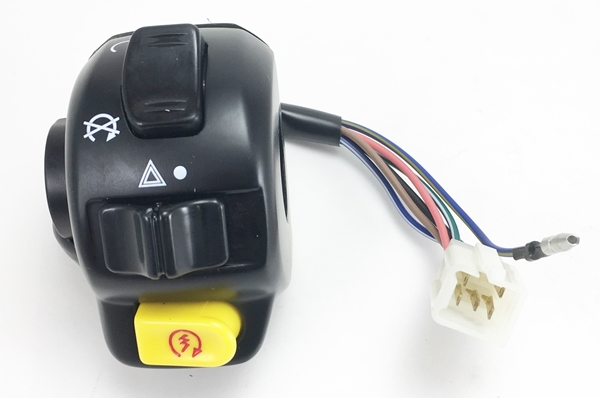

Right Hand Switch Assembly

• Complete switch assy for the Buddy 50, 125, 150 and 170i
• 2007 models and newer with Hazard Switch
• If you need one for a 2006 model give us a call

USB Port

• The newest Genuine Scooters are coming equipped with a USB port
  instead of the 12v accessory plug
• You can retrofit this USB Plug to your older Genuine Scooter

• Help your Buddy look its best......replace that faded or worn out floormat
• Most Buddy 125's

• Buddy 50 and 150 Italia - International Series

• Buddy 50 and 150 Pamplona - International

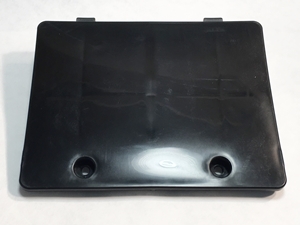

Battery Cover - Black

• Fits all Buddy's (50, 125, 150 and 170)

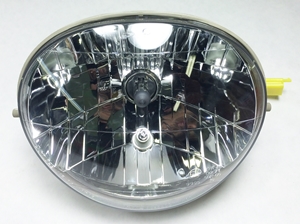

Headlight Assembly

• Large Version
• Includes both bulbs, wiring sub harness, and rubber cap
• Fits ALL Buddy's 2007 and newer

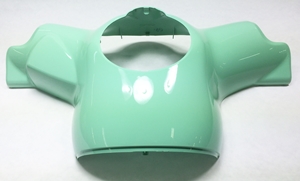

Handlebar Cover - Upper

• Fits Buddy 50, 125, 150 and 170i
• We only stock a few colors
• If your color is not in stock it will ship in 4-6 business days
• We will be stocking more bodywork soon, in the meantime give
  us a call to order anything you don't see

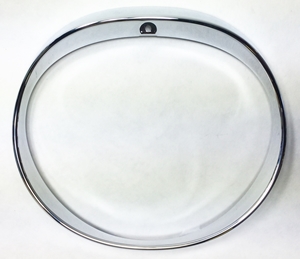

Headlight Ring (Bezel)

• Large chrome version for 2007 and newer models
• Fits: Buddy 50, 125, 150 and 170
• Also available in black

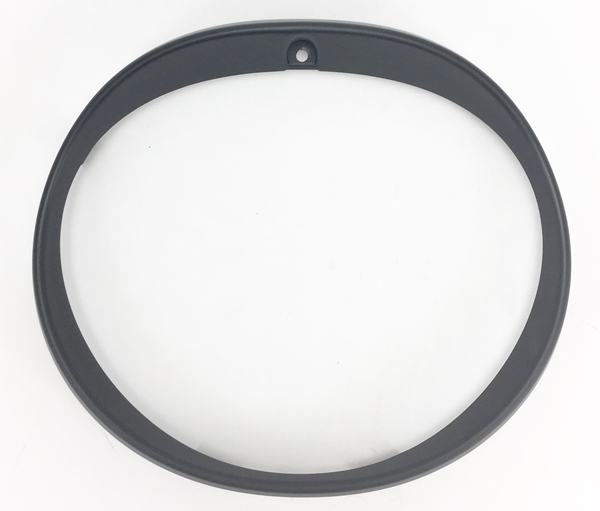

Headlight Ring (Bezel) - Flat Black

• Black version of the above - 2007 and newer
• Fits: Buddy 50, 125, 150 and 170
• Used on the Psycho and other versions

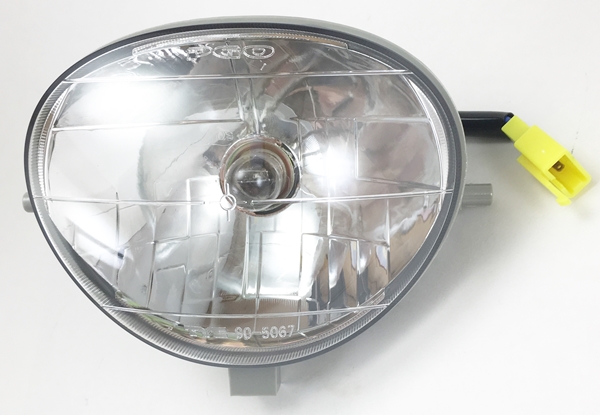

Small Headlight

• Fits 2006 Buddy's ONLY
• Complete assembly

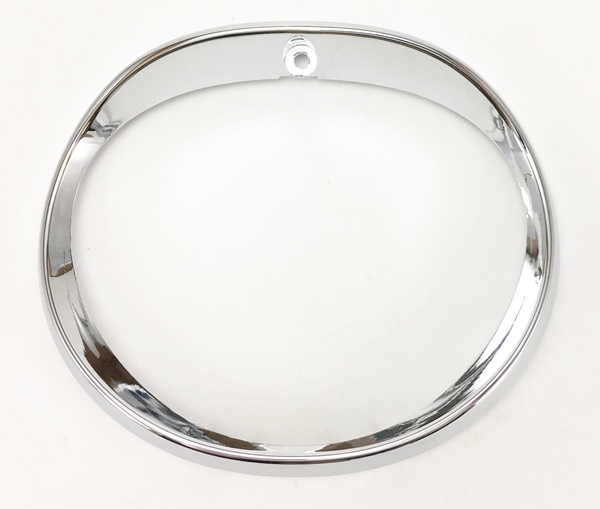

Headlight Ring (Bezel) - Small

• Used on 2006 models only
• Buddy 50, 125, and 150
• Available in chrome only

• Buddy 50, 150 and 170i International Series - Italia / St. Tropez
• Includes Throttle Tube
• The grip is GREY (it may seem a little green in the picture but its just the lighting) It is the orginal color that came on those two "International Series"
• Will fit all Buddys, if you'd like to change out your original grips
• Don't forget the Grip Glue (just below the all the grips)

• Buddy 50, 150 and 170i International Series - Italia / St. Tropez
• The grip is GREY (it may seem a little green in the picture but its just the lighting) It is the orginal color that came on those two "International Series"
• Will fit all Buddys, if you'd like to change out your original grips

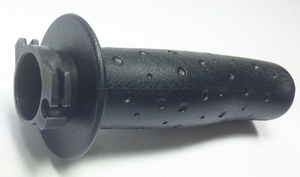

Grip - Right Hand - Black

• Fits: All Buddys and Black Cat
• Includes throttle tube
• Don't forget the Grip Glue (just below the all the grips)

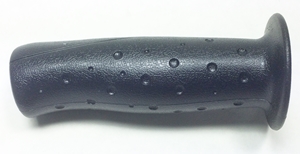

Grip Left Hand - Black

• Fits: All Buddys and Black Cat

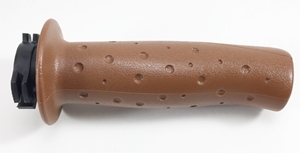

Grip - Right Hand - Brown

• Will fit all Buddys if you'd like to change out your original grips
• Includes throttle tube

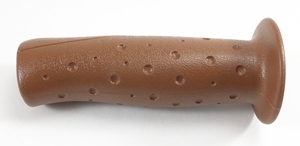

Grip - Left Hand - Brown

• Will fit all Buddys if you'd like to change out your original grips
• Don't forget the Grip Glue (just below the all the grips)

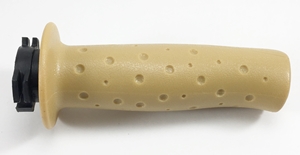

Grip - Right Hand - Tan

• Originally used on Pamplona International Series Buddys
• Will fit all Buddys if you'd like to change out your original grips
• Includes throttle tube

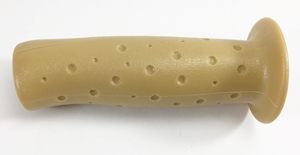

Grip - Left Hand - Tan

• Originally used on the Pamplona International Series
• Will fit all Buddys if you'd like to change out your original grips
• Don't forget the Grip Glue (just below the all the grips)

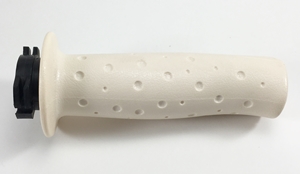

Grip - Right Hand - White

• Was used on the Pink Buddys and possibly others?
• Will fit all Buddys if you'd like to change out your original grip
• Includes throttle tube

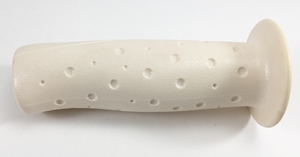

Grip - Left Hand - White

• Will fit all Buddys if you'd like to change out your original grips

Grip Glue

• Small tube of grip glue
• Good for 1 - 2 sets of grips
• Makes installation of new grips easier and keeps them from spinning

• Buddy 50 - 125 - 150 -170

• Buddy 50 - 125 - 150 - 170

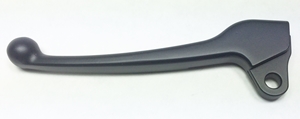

Pivot Bolt

• Pivot bolt for the Left / Rear lever only (other side coming soon)
• BC

Muffler Cover - Heat Shield

• Muffler heat shield - Black Plastic
• Does NOT include any bolts, spacers, or washers (we now have them for sale online!)

• Buddy 50, 150 and 170
• 3 Mounting Holes

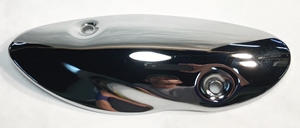

Muffler Cover - Chrome

• Muffler Cover / Heat Shield - Includes aluminized backing
• Chromed steel
• Buddy 125 Only
• 2 Mounting Holes

Mounting Hardware - Heat Shields

• Sold as a "kit" as seen in the picture
• 1 "kit" includes 1 each of the following: Heat Resistant Washer, Grommet, Cup Washer, and Screw


Speedometer Drive Gear

• Used to drive your speedometer cable off the front wheel
• Buddy 50

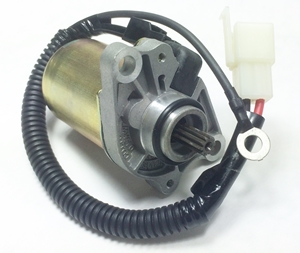

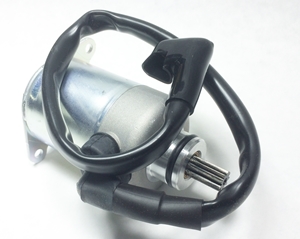

Starter Motor

• Fits: Buddy 50, RoughHouse50, Rattler 50, and Black Cat 50

Starter Motor

• Fits: Buddy 125, 150, 170 and Hooligan

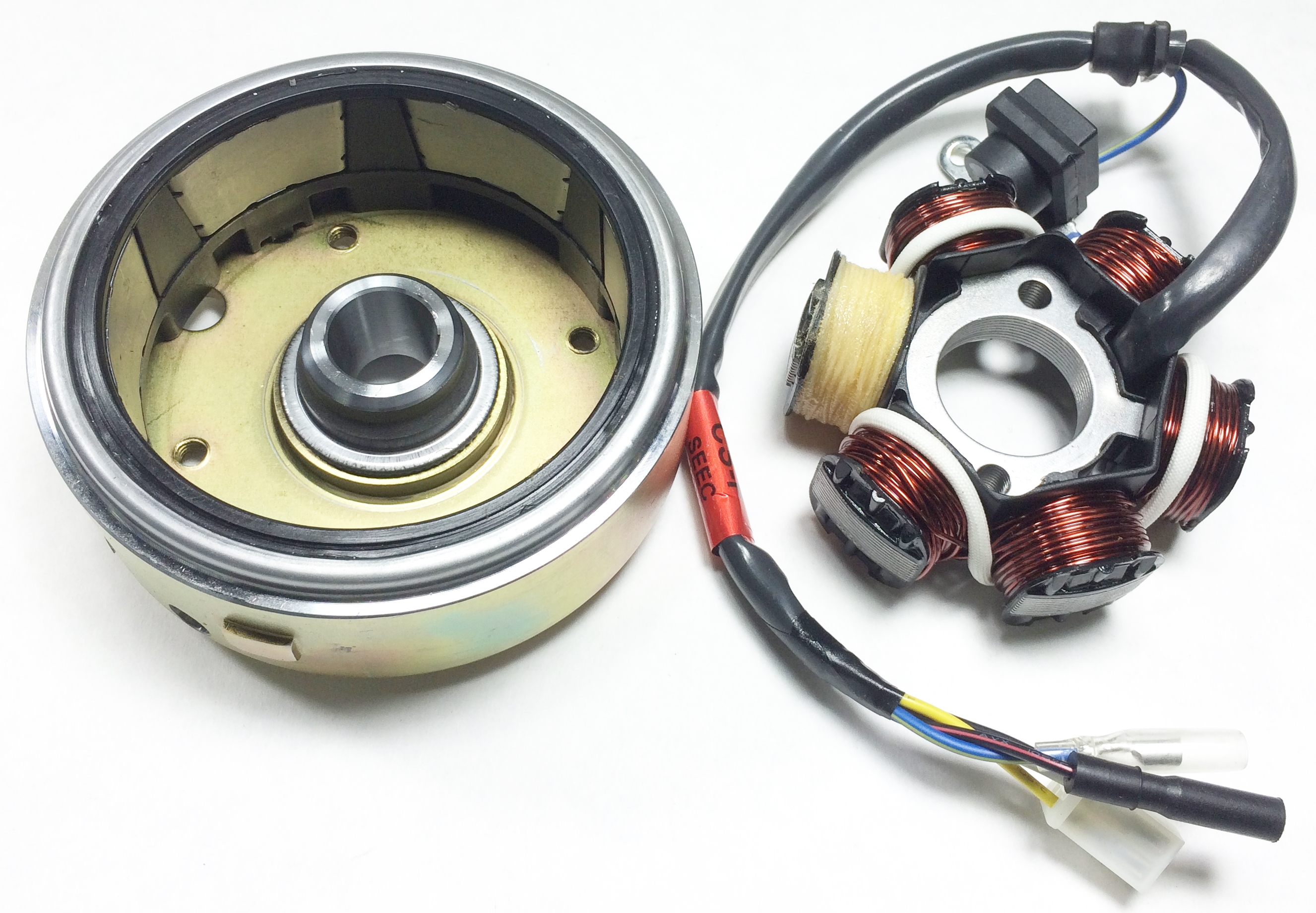

Magneto Assembly

• Complete assembly with stator and rotor
• Fits: Buddy 50

Magneto Assembly

• Complete assembly with stator and rotor
• Fits: Buddy 125

• AKA "The Black Box"
• Controls the ignition of your scooter
• If you have lost spark completely this is most likely the cause (however, a proper troubleshooting should be completed per the service manual)
• Includes CDI unit and rubber strap/mount
• Buddy 125 - 150

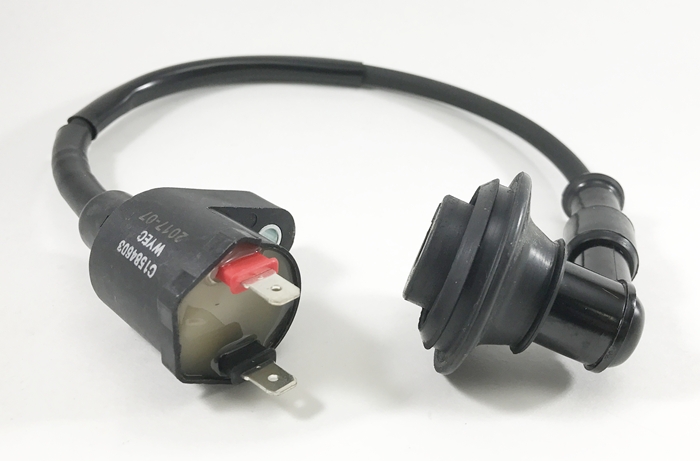

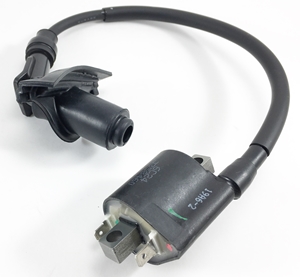

Ignition Coil

• Buddy 50
• Includes Coil, Wire, and Spark Plug Cap

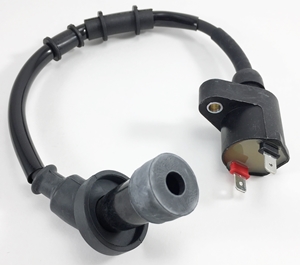

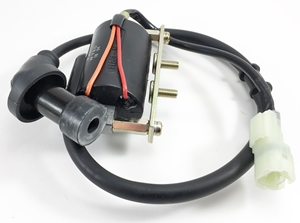

Coil

• Buddy 125 and 150
• Includes Coil, Wire, and Spark Plug Cap
• Has a 45 degree angled cap

Coil

• Buddy 170i
• Includes Coil, Wire, Mounting Bracket, Sub-Harness, and
  Spark Plug Cap

Ignition Coil

• Fits the NEW Buddy Kick
• Includes Coil, Wire, and Cap

• If your scooter is not charging the battery while running this could be your problem (troubleshoot per the service manual)
• Buddy 50 - 125 - 150

• If your engine will not turn over at all and your battery tests OK this could be your issue (troubleshoot properly)
• Includes relay and rubber strap/mount
• Buddy 125 - 150 - 170

• If your engine will not turn over at all and your battery tests OK this could be your issue (troubleshoot properly)
• Includes relay and rubber strap/mount
• Buddy 50

• Used on the Buddy 150
• If your Stebel Air Horn is not working, check this first

• Buddy 50 - 125 - 150 - 170
• Activates your brake light and allows the scooter to start

• Buddy 50 - 125 - 150 - 170
• Activates your brake light and allows the scooter to start

• Buddy 50 - 125 - 150 - 170
• Choose Left or Right from menu ------->
• Sides are always as if you were sitting on your bike
• These are the "handlebar" turn signals as required by the USA DOT, may not be installed on all versions of the Buddy

• Buddy 50 - 125 - 150 - 170
• Sold in pairs only now

• All Buddy's - 50 - 125 - 150 - 170
• Lens ONLY
• Choose Side -------->
• Sold each

• All Buddy's: 50 - 125 - 150 - 170
• Amber Bulb ONLY
• Sold each

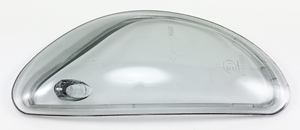

Turn Signal Lens - Front Cover

• Turn signal lens for the turn signals that are integrated into the front bodywork
• Genuine is only selling them in pairs now. However we do have some right sides still in stock. You can order a right side only, or if you need a left side you will need to order the pair. Thanks

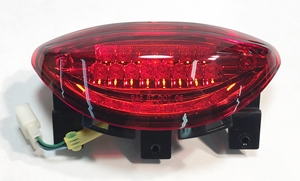

Rear Tail / Brake Light - LED

• Tail light assemblly for all Buddy's
• LED version as used on 2008 and newer models
• Will work on older, non LED versions as well

• Short (8") stem version - Chrome
• Stock on pre-2009(?) models (Buddy 50, 125, 150 and 170)
• Will work on all Buddy models
• 8mm threads - 1 regular - 1 reverse

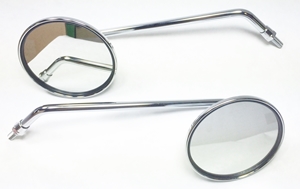

Mirror Set - Long

• Long 10 inch stem version - Chrome
• Used on newer Buddy models (50, 125, 150, and 170)
• Will work on old or new models
• 8mm threads - 1 regular -1 reverse

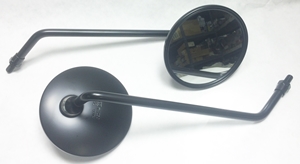

Mirror Set - Black

• Same as the long 10" version above in flat (matte) black
• Will work on ALL Buddys
• 8mm threads - 1 regular - 1 reverse

• Buddy 50 front brake pads

• Buddy 50 rear brake shoes

• Buddy 125 - 150 -170i

• Buddy 125 - 150 - 170i

• Buddy 50, RoughHouse 50, Rattler 50
• Used in the Variometer and wear over time
• 16mm x 13mm
• Stock 7.5 grams
• Sold as a set of 6

• Variator component
• Sold as a set of 3
• Buddy 125 - 150

• Buddy 50
• Another wear item in your driveline
• Comes complete and pre-assembled as shown

• Buddy 50
• Located on the right side of engine
• Keeps air flowing over your engine to keep it cool

• Buddy 125 - 150 - 170

Oil Tank Cap

• Buddy 50

• Buddy 50
• This is an updated piston that will work on all years

• Buddy 50
• Sold as a set of two (2)

• Buddy 50

• Buddy 50
• Bearing between crankshaft and wrist pin

• Buddy 50
• A good rule of thumb is - anytime you see these circlips you should replace them (even if you are just replacing your piston rings)

• Buddy 50
• At this price, there's no reason not to replace it when you are doing a rebuild

• Buddy 50
• See above

• Fits between cylinder head and muffler assy
• Buddy 125

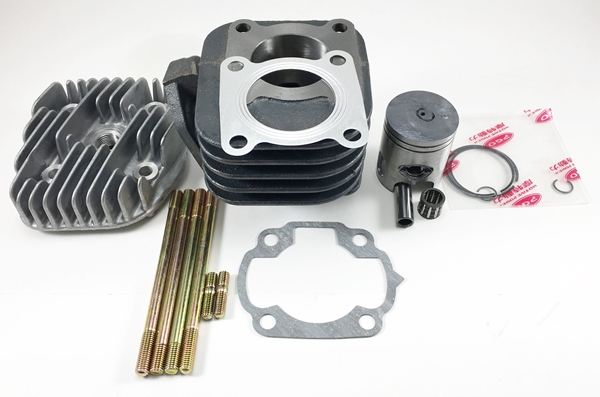

Top End Rebuild Kit

• Includes everything you need to freshen up your Buddy 50
• Includes: Cylinder, Cylinder Head, Piston, Ring Set, Wristpin and Bearing, Circlips, Gaskets and Studs
• Will work on all Buddy 50's

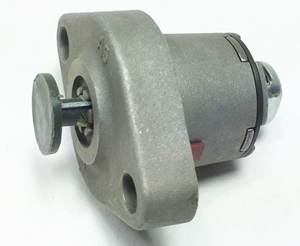

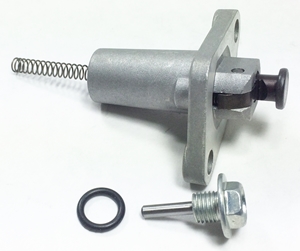

Cam Chain Tensioner

• Tensioner with new o-ring and bolt
• Fits Buddy 125

Cam Chain Tensioner

• Tensioner only
• Fits Buddy 150, 170i, and Hooligan 170

• Buddy 50
• Does NOT include pinch bolt

Kickstart Spring

• Part of the kickstart mechanism that can wear out
• Fits: Buddy 50

• Engages inside the belt cover to turn over the engine
• Buddy 125 - 150

• Holds kickstart shaft in place on backside of belt cover.
• Buddy 125 - 150

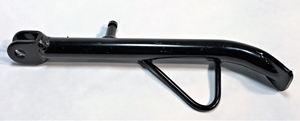

Side Stand

• Used on ALL Buddys

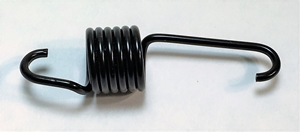

Side Stand Spring

• Used on ALL Buddy Scooters

Centerstand Rubber Bump Stop

• If you hear a loud "clang" when you put your centerstand up check to see if this is missing
• Buddy 50

Centerstand Spring

• Buddy 50

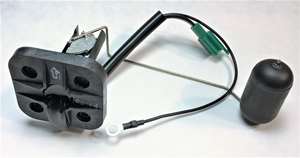

Fuel Level Sender - "Iron Tank"

• Fits 2008 and newer Buddys with a steel gas tank (Iron Tank)
• All models - 50, 125, 150 and 170
• Includes new gasket

• Vacuum operated fuel sending unit
• This unit allows the fuel to flow from your gas tank to carburetor
• Includes filter screen
• Buddy 50 - 125 - 150

• New float bowl o-ring
• Its good to have one on hand anytime you are going to crack open the carburetor for cleaning or re-jetting
• Fits Buddy 125 - 150

Float

• Buddy 125, Buddy 150 and Blur 150

• Keeps the carb from overflowing - can wear out over time
• Buddy 125 - 150

• Buddy 125 - 150
• #38 is the stock size
• #40 and #42 may provide a more steady idle or if you have any
  performance modifications on your scooter

Accelerator Pump Diaphragm

• Fits Buddy 125 and 150

Spring (Accelerator Pump)

• Buddy 125 and 150

Rubber Boot (Accelerator Pump)

• Buddy 125 and 150

Float Bowl Screw - 93500040121H

• Float Bowl Screw - Silver
• Part Number: 93500040121H
• Check the parts manuals to see where it is used
• If you're taking your float bowl off you'll want to have some on hand
• 4 x 12 machine screw

Carburetor Assembly

• Complete assembly with auto choke etc
• Fits: Buddy 125 and 150

Slide / Diaphragm

• Sometimes the rubber diaphragm can become damaged if it does
  your scooter will most likely not accelerate past a certain speed
• Fits the Buddy 125

Float Bowl O-Ring

• Now available without having to buy the complete float bowl assy
• If you're taking the float bowl off to clean the carb or re-jet its a good idea to have one of these on hand
• Buddy 50

Float Bowl + O-Ring

• Fits Buddy 50
• Includes Float Bowl, O-Ring and Drain Screw

Float

• Buddy 50 and Rattler 110

Float Pin

• Buddy 50 and Rattler 110

Float Needle

• Buddy 50 and Rattler 110

Intake O-Ring

• Fits between carburetor and cylinder
• Buddy 50 and Rattler 110

Intake O-Ring

• Fits on the spacer between the intake manifold and the cylinder head
• If your scooter "hunts" for an idle, or dies unexpectedly, check this o-ring
• Fits the Buddy 125 and Buddy 150 (also the Blur 150)

Main Jet

• #75
• Fits Buddy 50

Mixture Screw Assy

• Complete mixture screw assembly
• Includes screw, spring, washer and o-ring
• Fits: Buddy 50 and Rattler 110

• Buddy 50
• Also known as the Auto Choke Assembly
• Includes o-rings

Screw - 90110401200

• Common screw used throughout all Genuine scooters
• Part number is: 90110401200
• Check the parts manuals to see where it is used
• 4 x 12 self tapping screw - Black

Screw - 90150501601

• Tapping screw used on multiple modes
• Part Number: 90150501601
• Check the parts manuals to see where it is used
• 5 x 12 tapping screw

Screw - 90130501401

• Used to secure the battery cover on the Buddys
• Part Number: 90130501401
• Check the parts manuals to see where it is used
• 5 x 14 tapping screw

Screw - 90110401600

• Tapping screw used on multiple models - Gold
• Part Number: 90110401600
• Check the parts manuals to see where it is used
• 5 x 16 tapping screw

Flange Bolt - 90190804003

• 8 x 40 flange bolt used in multiple places
• Check the parts manuals to see where it is used
• Part Number: 90190804003

Flange Bolt - 90191002800

• 10 x 28 x 1.25 fine thread
• Check the parts manuals to see where it is used
• Part Number: 90191002800

Flange Nut - 92060800002

• 8 x 1.25 flange nut
• Has Blue Loctite pre applied
• Check the parts manuals to see where it is used
• Part Number: 92060800002

Flat Washer - 92140600018

• 6 x 13 x 1 Plain Washer
• Check the parts manuals to see where it is used
• Part Number: 92140600018

O-Ring - 95512000001

• Check the parts manuals to see where it is used
• Part Number: 95512000001

O-Ring - 95511300001

• Check the parts manuals to see where it is used
• Part Number: 95511300001
